ADAPTEC, INC.

AHA1530P

Card Type

Hard drive controller card

Hard Drives supported

Up to 7/15 SCSI devices

Floppy drives supported

None

Data Bus

16-bit ISA

Card Size

Half-length, full-height card

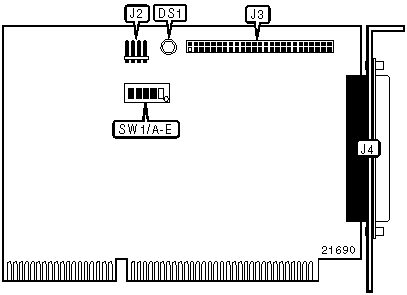

CONNECTIONS

Function

Location

Function

Location

4-pin connector - drive active LED

J2

50-pin SCSI connector - external

J4

50-pin SCSI connector - internal

J3



USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Port address is 340h-35Fh

SW4

Off



Port address is 140h-15Fh

SW4

On

»

Factory configured - do not alter

SW5

Unidentified

»

F Factory configured - do not alter

SW5

Unidentified

BIOS ADDRESS SELECTION

Address

SW1/C

SW1/D

SW1/E

C8000h

On

Off

On

CC000h

On

Off

Off

D0000h

Off

On

On

D4000h

Off

On

Off

D8000h

Off

Off

On

DC000h

Off

Off

Off

DC000h, inactive

On

On

Off

BIOS disable

On

On

On

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

DS1

Green

On

Termination is set correctly

DS1

Red

On

More than two devices are terminated

DS1

Orange

On

Fewer than two devices are terminated

Note: The LED only light up when the disk drive is active.
