CREATIVE LABS, INC.

ADVANCED WAVE TABLE UPGRADE,

SOUNDBLASTER AWE32 (CT1922)

Card Type

Sound card

Chip Set

Unidentified

Maximum Onboard Memory

28MB DRAM

I/O Options

Line out, SPDIF (digital interface format) connector

Data Bus

16-bit ISA

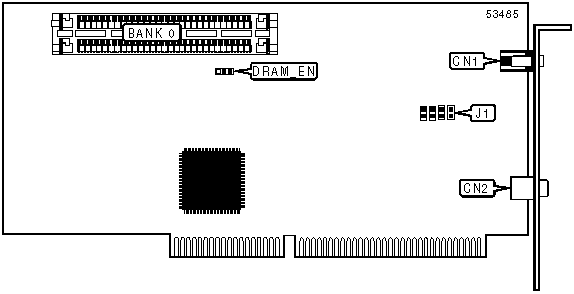

CONNECTIONS

Function

Label

Function

Label

Line out

CN1

SPDIF (digital interface format) connector

CN2

USER CONFIGURABLE SETTINGS

Function

Label

Position

512KB DRAM enabled

DRAM_EN

Pins 2 & 3 closed



512KB DRAM disabled - SIMM RAM module enabled

DRAM_EN

Pins 1 & 2 closed



Audio connectors to motherboard

J1

Open

DRAM CONFIGURATION

Note: Memory can be upgraded to 28MB, how ever configuration is unidentified.
