Dolphin peripherals, llc.

Fastisa-4013

Card Type

Parallel card

Chip Set

Holtek

Maximum Onboard Memory

None

I/O Options

Parallel ports (2)

Data Bus

16-bit ISA

Floppy drives supported

None

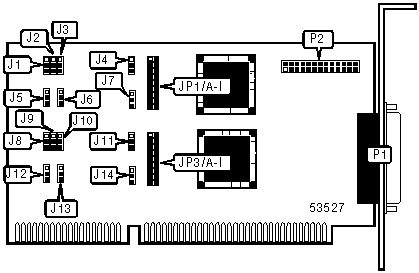

CONNECTIONS

Function

Location

Function

Location

25-pin parallel port 1

P1

26-pin parallel port 2

P2

PARALLEL PORT 1 ADDRESS SELECTION

LPT

J8

J9

J10

»

LPT1(378h)

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 2 & 3 closed



LPT2(278h)

Pins 1 & 2 closed

Pins 2 & 3 closed

Pins 2 & 3 closed



LPT3(3BCh)

Pins 2 & 3 closed

Pins 1 & 2 closed

Pins 2 & 3 closed



LPT4(268h)

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 1 & 2 closed



LPT5(26Ch)

Pins 1 & 2 closed

Pins 2 & 3 closed

Pins 1 & 2 closed



LPT6(27Ch)

Pins 2 & 3 closed

Pins 1 & 2 closed

Pins 1 & 2 closed

PARALLEL PORT 2 ADDRESS SELECTION

LPT

J1

J2

J3



LPT1(378h)

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 2 & 3 closed

»

LPT2(278h)

Pins 1 & 2 closed

Pins 2 & 3 closed

Pins 2 & 3 closed



LPT3(3BCh)

Pins 2 & 3 closed

Pins 1 & 2 closed

Pins 2 & 3 closed



LPT4(268h)

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 1 & 2 closed



LPT5(26Ch)

Pins 1 & 2 closed

Pins 2 & 3 closed

Pins 1 & 2 closed



LPT6(27Ch)

Pins 2 & 3 closed

Pins 1 & 2 closed

Pins 1 & 2 closed

PARALLEL PORT 1 INTERRUPT SELECTION

IRQ

JP3/A

JP3/B

JP3/C

JP3/D

JP3/E

JP3/F

JP3/G

JP3/H

JP3/I



IRQ3

Closed

Open

Open

Open

Open

Open

Open

Open

Open



IRQ4

Open

Closed

Open

Open

Open

Open

Open

Open

Open



IRQ5

Open

Open

Closed

Open

Open

Open

Open

Open

Open

»

IRQ7

Open

Open

Open

Closed

Open

Open

Open

Open

Open



IRQ9

Open

Open

Open

Open

Closed

Open

Open

Open

Open



IRQ10

Open

Open

Open

Open

Open

Closed

Open

Open

Open



IRQ11

Open

Open

Open

Open

Open

Open

Closed

Open

Open



IRQ12

Open

Open

Open

Open

Open

Open

Open

Closed

Open



IRQ15

Open

Open

Open

Open

Open

Open

Open

Open

Closed

PARALLEL PORT 2 INTERRUPT SELECTION

IRQ

JP1/A

JP1/B

JP1/C

JP1/D

JP1/E

JP1/F

JP1/G

JP1/H

JP1/I



IRQ3

Closed

Open

Open

Open

Open

Open

Open

Open

Open



IRQ4

Open

Closed

Open

Open

Open

Open

Open

Open

Open

»

IRQ5

Open

Open

Closed

Open

Open

Open

Open

Open

Open



IRQ7

Open

Open

Open

Closed

Open

Open

Open

Open

Open



IRQ9

Open

Open

Open

Open

Closed

Open

Open

Open

Open



IRQ10

Open

Open

Open

Open

Open

Closed

Open

Open

Open



IRQ11

Open

Open

Open

Open

Open

Open

Closed

Open

Open



IRQ12

Open

Open

Open

Open

Open

Open

Open

Closed

Open



IRQ15

Open

Open

Open

Open

Open

Open

Open

Open

Closed

PARALLEL PORT 1 MODE SELECTION

Setting

J12

J13



SPP

Pins 2 & 3 closed

Pins 2 & 3 closed

»

ECP

Pins 1 & 2 closed

Pins 1 & 2 closed



EPP

Pins 2 & 3 closed

Pins 1 & 2 closed



PS/2

Pins 1 & 2 closed

Pins 2 & 3 closed

PARALLEL PORT 2 MODE SELECTION

Setting

J5

J6



SPP

Pins 2 & 3 closed

Pins 2 & 3 closed

»

ECP

Pins 1 & 2 closed

Pins 1 & 2 closed



EPP

Pins 2 & 3 closed

Pins 1 & 2 closed



PS/2

Pins 1 & 2 closed

Pins 2 & 3 closed

PARALLEL PORT 1 DMA CHANNEL SELECTION

Channel

J11

J14

»

1

Pins 1 & 2 closed

Pins 1 & 2 closed



3

Pins 3 & 4 closed

Pins 3 & 4 closed

PARALLEL PORT 2 DMA CHANNEL SELECTION

Channel

J4

J7



1

Pins 1 & 2 closed

Pins 1 & 2 closed

»

3

Pins 3 & 4 closed

Pins 3 & 4 closed
