MEDIA VISION TECHNOLOGY, INC.

PRO AUDIO SPECTRUM 16 REV.D (650-0097-05)

Card Type

Sound card

Chip Set

Unidentified

Maximum Onboard Memory

Unidentified

I/O Options

Game/MIDI port, CD-ROM audio in , SCSI interface, microphone in, stereo line in, stereo line out

Data Bus

16-bit ISA

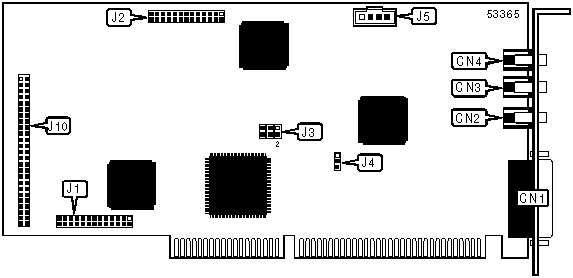

CONNECTIONS

Function

Label

Function

Label

Game/MIDI port

CN1

Unidentified

J1

Microphone in

CN2

Unidentified

J2

Stereo line out

CN3

Audio in - CD-ROM

J5

Stereo line in

CN4

50-pin SCSI connector

J10

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

DMA sharing - disabled

J4

Pins 2 & 3 closed



DMA sharing - enabled

J4

Pins 1 & 2 closed

BOARD ID SELECTION

Setting

J3/pins 1 & 2

J3/pins 3 & 4

J3/pins 5 & 6

»

0

Open

Open

Open



1

Closed

Open

Open



2

Open

Closed

Open



3

Closed

Closed

Open



4

Open

Open

Closed

Note: When ID 4 is selected, the base I/O address is forced to 388h. For all other ID’s the software scans for available settings. Refer to the manufacturer’s documentation for possible settings.
