DTK COMPUTER, INC.

GRAFIKA 3A

Processor

80386SX

Processor Speed

20MHz

Chip Set

C & T

Max. Onboard DRAM

5MB

Cache

None

BIOS

DTK

Dimensions

330mm x 218mm

I/O Options

None

NPU Options

80387SX

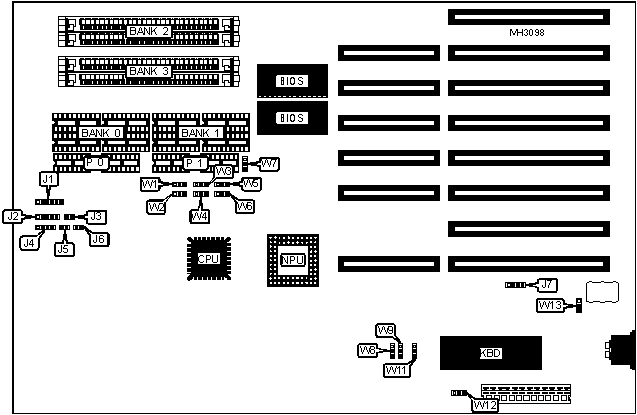

CONNECTIONS

Purpose

Location

Purpose

Location

CPU frequency connector

J1

Turbo LED

J5

Power LED & keylock

J2

Reset switch

J6

Turbo switch

J3

External battery

J7

Speaker

J4



USER CONFIGURABLE SETTINGS

Function

Jumper

Position

»

BIOS type select 27256

W7

pins 1 & 2 closed



BIOS type select 27128

W7

pins 2 & 3 closed

»

Pipeline mode enabled

W8

pins 2 & 3 closed



Pipeline mode disabled

W8

pins 1 & 2 closed

»

NPU disabled

W9

pins 2 & 3 closed



NPU enabled

W9

pins 1 & 2 closed

»

Power good signal detect from power supply

W11

pins 2 & 3 closed



Power good signal detect from board

W11

pins 1 & 2 closed

»

Monitor type select monochrome

W12

pins 1 & 2 closed



Monitor type select color

W12

pins 2 & 3 closed

»

Battery type select external

W13

pins 1 & 2 closed



Battery type select internal

W13

pins 2 & 3 closed

DRAM CONFIGURATION

Size

Bank 0

P 0

Bank 1

P 1

Bank 2

Bank 3

512KB

(4) 44256

(2) 41256

NONE

NONE

NONE

NONE

640KB

(4) 44256

(2) 41256

(4) 4164

(2) 41256

NONE

NONE

1MB

(4) 44256

(2) 41256

(4) 44256

(2) 41256

NONE

NONE

1.5MB

(4) 44256

(2) 41256

(4) 44256

(2) 41256

(2) 256K x 9

NONE

2MB (A)

(4) 44256

(2) 41256

(4) 44256

(2) 41256

(2) 256K x 9

(2) 256K x 9

2MB (B)

NONE

NONE

NONE

NONE

(2) 1M x 9

NONE

3MB

(4) 44256

(2) 41256

(4) 44256

(2) 41256

(2) 1M x 9

NONE

4MB

NONE

NONE

NONE

NONE

(2) 1M x 9

(2) 1M x 9

5MB

(4) 44256

(2) 41256

(4) 44256

(2) 41256

(2) 1M x 9

(2) 1M x 9

DRAM JUMPER CONFIGURATION

Size

W1

W2

W3

W4

W5

W6

512KB

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

640KB

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

1MB

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

1.5MB

2 & 3

2 & 3

2 & 3

2 & 3

2 & 3

2 & 3

2MB (A)

2 & 3

2 & 3

2 & 3

2 & 3

2 & 3

2 & 3

2MB (B)

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

3MB

2 & 3

2 & 3

2 & 3

2 & 3

2 & 3

2 & 3

4MB

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

5MB

2 & 3

2 & 3

2 & 3

2 & 3

2 & 3

2 & 3

Note: Pins designated should be in the closed position.
