TULIP COMPUTERS

TR 586 EISA (VER. 1) (TC37)

Processor

Pentium Overdrive

Processor Speed

60/66MHz

Chip Set

Texas Instruments

Max. Onboard DRAM

128MB

Cache

256KB

BIOS

Phoenix

Dimensions

355mm x 304mm

I/O Options

Floppy drive interface, IDE interfaces (2), internal video board connector, parallel port, SCSI ports (3), serial ports (2)

NPU Options

None

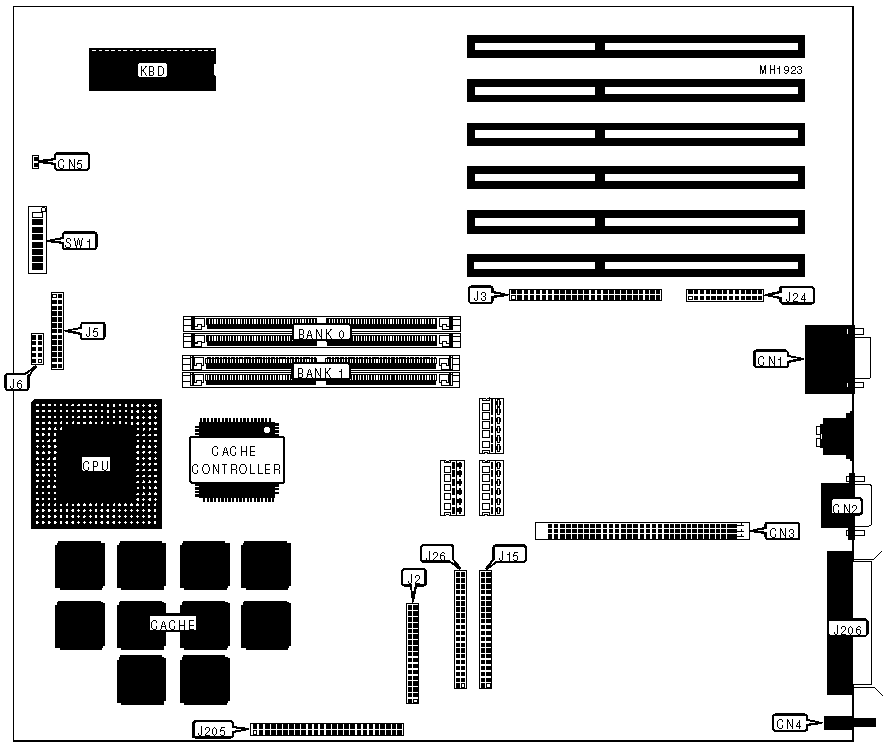

CONNECTIONS

Purpose

Location

Purpose

Location

Serial ports 1 & 2

CN1

Battery/speaker/power on LED

J6

VGA port

CN2

Primary IDE interface

J15

Internal video board connector

CN3

Parallel port

J24

UPS connector

CN4

Secondary IDE interface

J26

Chassis fan power

CN5

Internal SCSI connector

J205

Floppy drive interface

J2

External SCSI connector

J206

USER CONFIGURABLE SETTINGS

Function

Switch

Position

»

Factory configured - do not alter

SW1/5

Off

»

Factory configured - do not alter

SW1/6

On

»

Factory configured - do not alter

SW1/7

On

»

Factory configured - do not alter

SW1/8

Off

DRAM CONFIGURATION

Size

Bank 0

Bank 1

8MB

(2) 1M x 36

NONE

16MB

(2) 1M x 36

(2) 1M x 36

24MB

(2) 1M x 36

(2) 2M x 36

32MB

(2) 2M x 36

(2) 2M x 36

40MB

(2) 1M x 36

(2) 4M x 36

64MB

(2) 4M x 36

(2) 4M x 36

72MB

(2) 1M x 36

(2) 8M x 36

96MB

(2) 4M x 36

(2) 8M x 36

128MB

(2) 8M x 36

(2) 8M x 36

DRAM SWITCH CONFIGURATION

Size

SW1/1

SW1/2

SW1/3

SW1/4

8MB

Off

On

On

On

16MB

On

Off

On

On

24MB

Off

Off

On

On

32MB

On

Off

Off

On

40MB

On

On

Off

On

64MB

Off

Off

Off

On

72MB

Off

On

Off

On

96MB

On

On

On

Off

128MB

Off

On

On

Off
