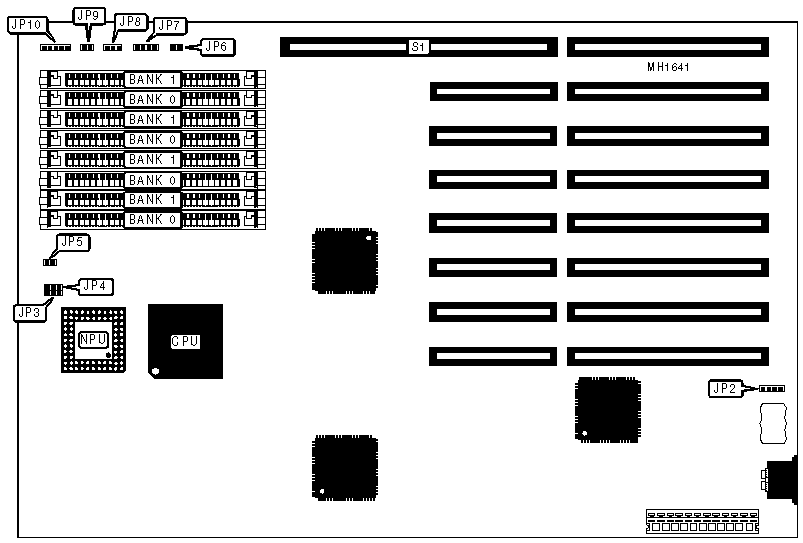

80386 CACHE (ETEQ VERSION)

Processor

80386DX

Processor Speed

33MHz

Chip Set

ETEQ

Max. onboard DRAM

32MB

Cache

None

BIOS

AMI

Dimensions

330mm x 218mm

I/O Options

None

NPU Options

80387DX/3167

CONNECTIONS

Purpose

Location

Purpose

Location

External battery

JP2

Turbo Switch

JP8

Reset switch

JP6

Turbo LED

JP9

Speaker

JP7

Power LED & keylock

JP10

USER CONFIGURABLE SETTINGS

Function

Jumper

Position

Monitor type select color

JP2

pins 1 & 2 closed



Monitor type select monochrome

JP2

pins 2 & 3 closed

NPU type select Weitek or none

JP5

Closed



NPU type select 80387DX

JP5

Open

DRAM CONFIGURATION

Size

Bank 0

Bank 1

1MB

(4) 256K x 9

NONE

2MB

(4) 256K x 9

(4) 256K x 9

4MB

(4) 1M x 9

NONE

8MB

(4) 1M x 9

(4) 1M x 9

16MB

(4) 4MB x 9

NONE

32MB

(4) 4MB x 9

(4) 4MB x 9

NPU CONFIGURATION

Mode

JP3

JP4

Synchronous

pins 1 & 2 closed

pins 1 & 2 closed

Asynchronous

pins 2 & 3 closed

pins 2 & 3 closed
