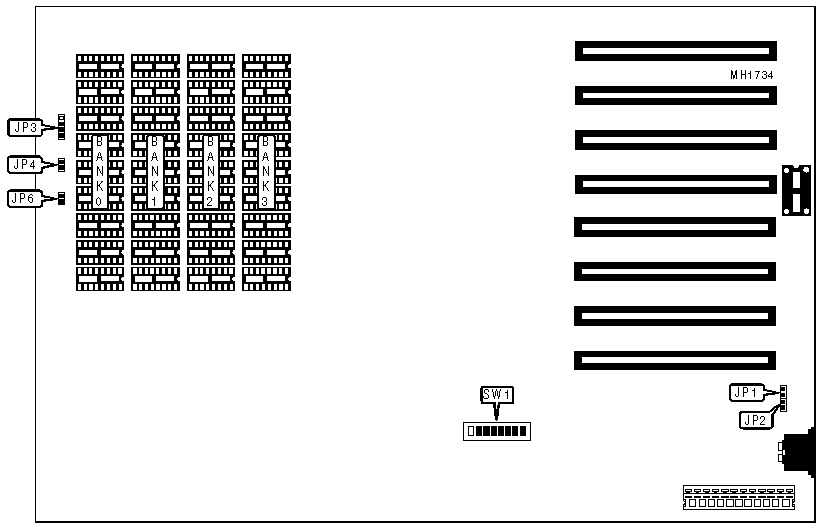

UNIDENTIFIED

TURBO 10-V01

Processor

8088 (Exact location unknown)

Processor Speed

4.77/10MHz

Chip Set

Unknown

Max. Onboard DRAM

640KB

Cache

None

BIOS

Unknown

Dimensions

330mm x 218mm

I/O Options

None

NPU Options

8087 (Exact location unknown)

CONNECTIONS

Purpose

Location

Turbo switch

JP5

Note:The location of JP5 is unknown.

USER CONFIGURABLE SETTINGS

Function

Switch

Position

»

Factory configured - do not alter

SW1/switch 1

Off

»

NPU enabled

SW1/switch 2

Off



NPU disabled

SW1/switch 2

On

DRAM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

256K

(9) 41256

NONE

NONE

NONE

512K

(9) 41256

(9) 41256

NONE

NONE

576K

(9) 41256

(9) 41256

(9) 4164

NONE

640K

(9) 41256

(9) 41256

(9) 4164

(9) 4164

MONITOR TYPE SELECTION

Type

SW1/switch 5

SW1/switch 6

Enhanced graphics

On

On

Color 40 x 20

Off

On

Color 80 x 25

On

Off

Monochrome

Off

Off

FLOPPY DRIVE CONFIGURATION

Number of drives

SW1/switch 7

SW1/switch 8

1

On

On

2

Off

On

3

On

Off

4

Off

Off

MISCELLANEOUS TECHNICAL NOTES

The settings and function of SW1/switch 3 and switch 4 are unknown. The functions of JP1, JP2, JP3, JP4, and JP6 on this board are unknown
