PLEXTOR

PX-12CSE, PX-12TSE

Device Type

CD-ROM

Interface

SCSI

Size

5.25 in. half height

Spin Rate

12X

Formats Supported

CD-ROM Mode 1, CD-DA, CD-I, CD-XA (Mode 2, Form 1, Form 2), Video CD, Photo CD, CD Plus, CD-G, Karaoke

View

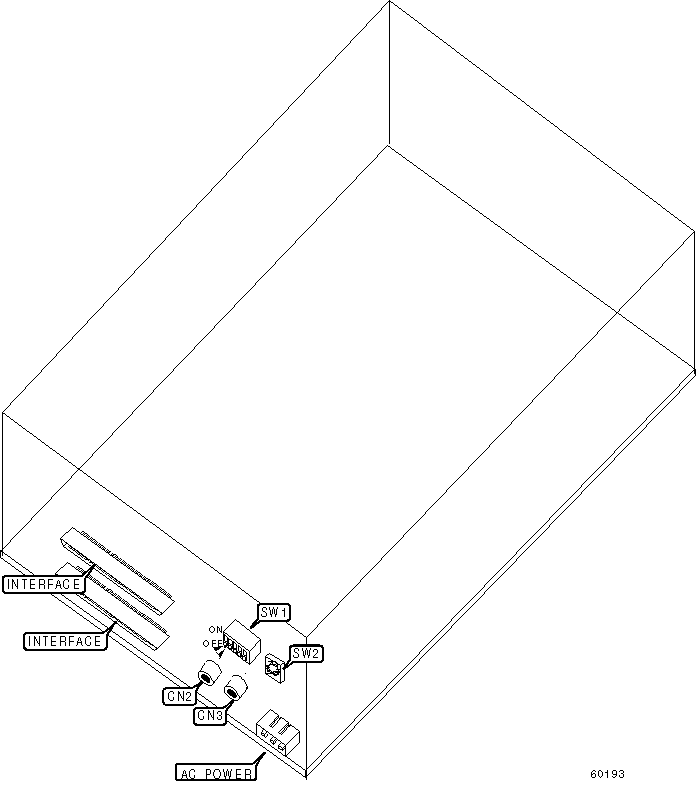

Top

CONNECTIONS

Function

Label

Function

Label

Audio out - right channel

CN2

Audio out - left channel

CN3

USER CONFIGURABLE SETTINGS

Setting

Label

Position

»

Parity check enabled

SW1/1

On



Parity check disabled

SW1/1

Off

»

SCSI termination enabled

SW1/2

On



SCSI termination disabled

SW1/2

Off

»

Factory configured - do not alter

SW1/3

Off

»

Block mode disabled

SW1/4

Off



Block mode enabled

SW1/4

On

»

Eject mode disabled

SW1/5

Off



Eject mode enabled

SW1/5

On

Note:Block mode enables the CD_ROM to be a boot drive in a UNIX environment.

When Eject mode is enabled, a disc can not be ejected with the eject button. Software must be used in order to eject the disc.

DRIVE SELECT ID

Drive ID

SW2 position



0

0



1

1



2

2

»

3

3



4

4



5

5



6

6



7

7
