DIALOGIC CORPORATION

LSI/120

Card Type

Telephony

Chip Set

Unidentified

I/O Options

PCM bus

Data Bus

16-bit ISA

Line Type

Loop-Start

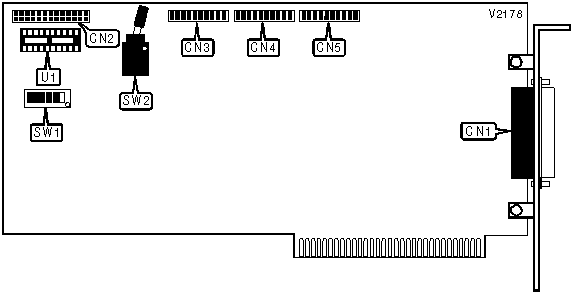

CONNECTIONS

Function

Label

Function

Label

Telephone lines in via DB-25 connector

CN1

Audio expansion connector

CN4

PCM bus

CN2

Audio expansion connector

CN5

Audio expansion connector

CN3



USER CONFIGURABLE SETTINGS

Setting

Label

Position

»

Board will use time slots 1-12

SW1/1

Off



Board will use time slots 13-24

SW1/1

On

»

Lines do not answer during reset condition

SW1/4

Off



Lines are made busy during reset condition

SW1/4

On

»

Signalling information sent to loop-start interface

SW1/6

Off



Signalling information sent to audio interfaces

SW1/6

On

»

Normal operation

SW2

Off



Loopback mode

SW2

On

»

Factory configured - do not alter

SW1/2

Off

»

Factory configured - do not alter

SW1/3

Off

»

Factory configured - do not alter

SW1/5

Off
