UNIDENTIFIED

9600 S/R FAX INTERNAL (REV.3.1)

Card Type

Fax, Modem (asynchronous)

Chip Set

Unidentified

Maximum Data Rate

2400bps

Maximum Fax Rate

9600bps

Data Bus

8-bit ISA

Fax Class

Unidentified

Data Modulation Protocol

Bell 103/212A

ITU-T V.21, V.22, V.22bis

Fax Modulation Protocol

ITU-T V.27ter, V.29

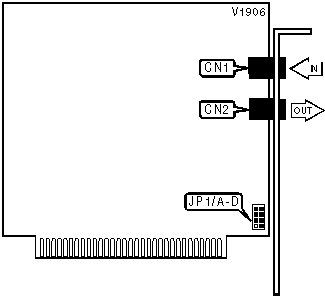

CONNECTIONS

Function

Label

Function

Label

Line in

CN1

Line out

CN2

SERIAL PORT ADDRESS - JUMPER SETTINGS

Setting

JP1/A

JP1/B

COM1 (3F8h)

Closed

Closed

í COM2 (2F8h)

Open

Closed

COM3 (3E8h)

Closed

Open

COM4 (2E8h)

Open

Open

INTERRUPT - JUMPER SETTINGS

Setting

JP1/C

JP1/D

í 3

Open

Closed

4

Closed

Open

Proprietary AT Command Set

See document V1879 for a full command summary.
