ATI TECHNOLOGIES, INC.

SMALL WONDER GRAPHICS SOLUTION

Card Type

Video card

Video Chip Set

Unidentified

Highest Resolution Supported

640 x 200

Maximum Video Memory

64KB

Data Bus

8-bit ISA

Video Types Supported

Monochrome, CGA

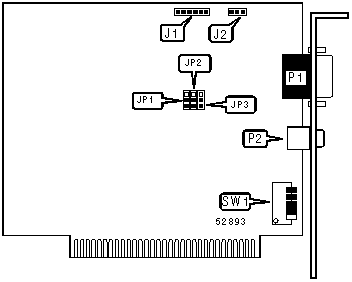

CONNECTIONS

Function

Label

Function

Label

Light pen

J1

9-pin digital video port

P1

Composite video output

J2

Composite video output

P2

USER CONFIGURABLE SETTINGS

Function

Label

Position

Factory configured - do not alter

JP1

Open

Factory configured - do not alter

JP2

Open

Factory configured - do not alter

JP3

Open

Factory configured - do not alter

SW1/4

N/A

DISPLAY CONFIGURATION

Type

SW1/1

Monochrome

On

CGA

Off

MONITOR SELECTION

Type

SW1/2

SW1/3

Monochrome

Off

Off

CGA

On

On

Analog monochrome

On

Off
