ICL

ERGOGRAFIX 664

Card Type

Video

Chip Set

ATI mach64GX

Maximum Onboard Memory

4MB VRAM (When memory card is connected)

Data Bus

32-bit PCI

Video Types Supported

XVGA

Highest Resolution Supported

1280 x 1024

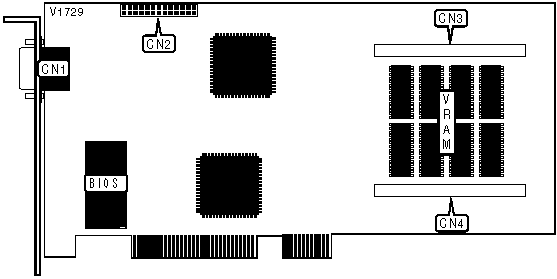

CONNECTIONS

Function

Label

Function

Label

15-pin analog video port

CN1

*Video RAM module connector

CN3

VGA feature connector

CN2

*Video RAM module connector

CN4

*Note: The # of pins these connectors have is unidentified.
