MONOLITHIC SYSTEMS, INC. (COLORADO MSI)

UltraVGA 453

Category

Video

Video Type

XVGA

Video Processor

Chips & Technologies

Highest Resolution Supported

1024 x 768

Data Bus Type

16-bit ISA

Memory Type

VRAM

Maximum Onboard Memory

1MB

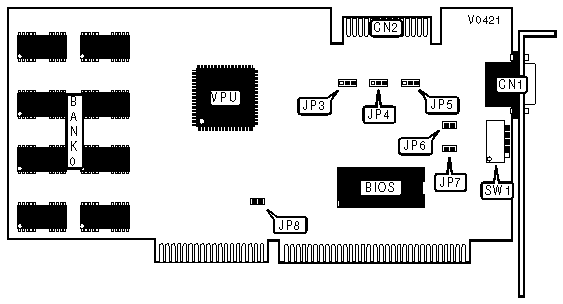

CONNECTIONS

Purpose

Location

Purpose

Location

15-pin analog video port

CN1

VGA Feature connector

CN2

VIDEO CLOCK SOURCE

Mode

JP3

»

Onboard clock

Pins 1 & 2 closed



VGA feature connector used

Pins 2 & 3 closed

FACTORY CONFIGURED SETTINGS

Jumper

Setting

JP4

Pins 1 & 2 closed

JP5

Pins 2 & 3 closed

JP6

Open

JP7

Open

SW1/1

Off

SW1/2

Off

SW1/4

Off

SW1/5

Off

INTERRUPT SELECTION

Setting

JP8

»

IRQ9 enabled

Closed



IRQ9 disabled

Open

INTERLACED MODE

Setting

SW1/3

Non-interlaced mode

On

Interlaced mode

Off
