PARADISE SYSTEMS, INC.

16 BIT VGA CARD

Card Type

Video card

Video Chip Set

Unidentified

Highest Resolution Supported

800 x 600

Maximum Video Memory

Unidentified

Data Bus

16-bit ISA

Video Types Supported

VGA

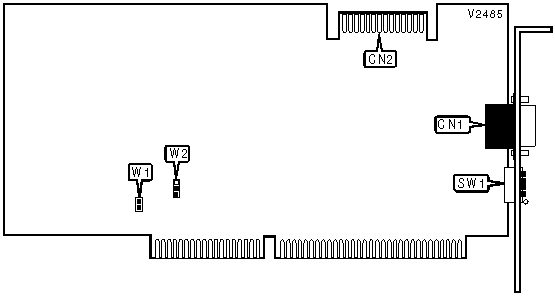

CONNECTIONS

Function

Label

Function

Label

15-pin analog video port

CN1

Feature connector

CN2

USER CONFIGURABLE SETTINGS

Function

Label

Position



Monitor type for special multi-frequency display timing

SW1/1

On



Monitor type for standard PS/2 compatible fixed frequency display timing

SW1/1

Off

VGA mode select PS/2 monitors

SW1/2

On



VGA mode select PC/AT monitors

SW1/2

Off

Factory configured - do not alter

SW1/3

Off

AutoSense set at 16-bit

SW1/4

On



AutoSense set at 8-bit

SW1/4

Off

Factory configured - do not alter

W1

Closed

Factory configured - do not alter

W2

Pins 1 & 2 closed
