STB SYSTEMS, INC
VGA 1024
|
Category |
Video |
|
Video Types Supported |
XVGA |
|
Video Processor |
Tseng Laboratories, Inc. |
|
Highest Resolution Supported |
1024 x 768 |
|
Data Bus Type |
16-bit ISA |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
512KB |
|
CONNECTIONS |
|
|
Purpose |
Location |
|
15-pin analog video port |
CN1 |
|
IRQ2 |
||
|
Setting |
J1 |
|
|
» |
Enabled |
Pins 1 & 2 closed |
|
Disabled |
Pins 2 & 3 closed |
|
|

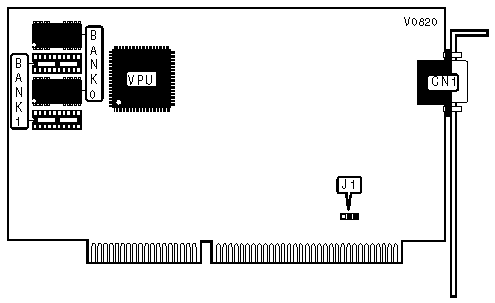

DRAM CONFIGURATION |
|||
|
Size |
Bank 0 |
Bank 1 |
|
|
» |
256KB |
(2) 256K x 4 |
None |
|
512KB |
(2) 256K x 4 |
(2) 256K x 4 |
|
